Coiled Tubing

Coiled Tubing 100K, Coiled Tubing M-60K, Triple POMP HT-400 y Unidad de bombeo HT 400 Doble.

MAIN TECHNICAL PARAMTERS

  • OVERALL DIMENSION: 22,000 MM LONG X 2,590 MM
    WIDE X 4,115MM TALL (866IN X 102 IN X 162 IN )
  • CONTINUOUS PULL: 100K LBS
  • INTERMITTENT PULL: 110K LBS
  • CONTINUOUS PUSH: 50K LBS
  • COILED TUBING MAXIMUM SPEED: VARIABLE UP TO 170 FT/MIN
  • STEADY MINIMUM RUNNING SPEED: 0.5 FT/MIN
  • REEL CAPACITY: 2”-20,000FT, THIS REEL WILL BE
    EQUIPPED WITH 1.75”-20,000FT TUBING.

    •

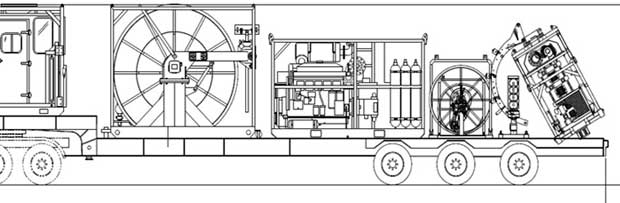

    Coiled Tubing M-60K

    Tráiler Coiled Tubing

    Trailer Coiled Tubing

    		Make: MXROS, INC. ( U.S.A )
    TRAILAER: DORSEY
    TRAILER Length: 16 MTS
    High: 4.16 MTS.
    Weigh: 37000 KGS
    Trailer Coiled Tubing

    		INJECTOR FOR 1.5” PIPE
    60.000 LBS PULL
    20.000 LBS PUSH
    MAX SPEED 150 FPM
    MIN SPEED 0.5 FPM
    PAWER PACK

    		PAWER PACK
    MOTOR CUMMINS DE 560 HP
    REEL TUBING

    		REEL TUBING
    MAX CAPACITY : 20.000 FT DE 1.5 “
    PIPE: 18.000 FT PIPE 1.5”,
    MADE BY QUALITY TUBING Q-900.
    QUAD BOP

    		3.06” 15M “EH” QUAD BOP
    MADE BY TEXAS OIL TOOLS
    MAX 15000 PSI

    		“DSH6” SIDE DOOR STRIPPER PACKER 3.06” 15 M
    MADE BY TEXAS OIL TOOLS
    MAX 15000 PSI

    Control Cabin

    Cabina de control

    SOFTWARE MEDCO
    DART ( DATA ACQUISITION )
    Dart FACT ( FATIGUE ANALYSIS

    		 Control Cabin

    FACT ( FATIGUE ANALYSIS FOR COILD TUBING )
    TAS ( WORK PROGRAM )

    TRIPLE POMP HT-400 TRIPLE POMP HT-400 TRIPLE POMP HT-400

    ENGINE: CATERPILLAR 3406.
    TRANSMISSION: ALLINSON HT-750
    POMPS: HT-400 DE 4.5 PULG
    Y CENTRIFUGA DE 6” X 4”.

    Unidad de bombeo HT 400 Doble Unidad de bombeo HT 400 Doble

    Las siguientes características distinguen la bomba HT-400:

  • Capacidad para bombear a presiones tan altas como 11,200 psi.
  • Ligera y compacta.
  • Alto rendimiento y larga vida útil.
  • Tres secciones de extremo de fluido separadas.

    • FABRICANTE MARCA: CHALMERS EQUIPMET
    MODELO: HT- 400 Doble
    SERIAL:
    AÑO: 2016
    CARACTERISTICAS MOTOR: Detroit Diesel Series 60 engines (8 cylinder - 475 brake horsepower @ 2,100 rpm) - electric start - rebuilt
    TRANSMISION: Allison HT-750
    CAUDAL: 8.6 BPM
    MAX. PRESION: 11.200 psi
    BOMBAS TRIPLEX: HT-400, pistones de 4”
    BOMBAS CENTRIFUGAS: Dowell 6” x 4”
