Our equipment is offered in various material configurations for a variety of well con- ditions. In this catalog, the default temperature rate of the tools is 300°F. The following allows and groups of alloys are currently the most common on materials used for the con- struction of the packers and other tools. Usually, our product use the material as follows: Standard, non-corrosive service -low alloy steels(e.g., 4140 or Chinese 42CrMo) with mechanical properties compatible with API P110 tubulars. Non‐corrosive service containing H2S -Low alloy steels (e.g., 4140 or Chinese 42CrMo) with mechanical properties compatible with API L80 tubulars. Corrosive CO2 service with little or no H2S -Martensitic and PH stainless steels (e.g., 9Cr, 13Cr, 17-4PH) with mechanical properties that vary from 80 ksi to 110 ksi minimum yield strength. The selection of the specific corrosion resistant alloy depends on the environment (pH, chlorides, temperature, H2S, etc.) and strength requirements. Severely corrosive CO2 and H2S -Nickel alloys such as 718 at strength level of 110 ksi minimum yield strength and higher. For temporary work, followed by milling operations to remove the product: Cast iron or polymer composites should be used. The following symbols indicate that this product can work in this environment by changing the materials of the components: |
Bridge Plugs

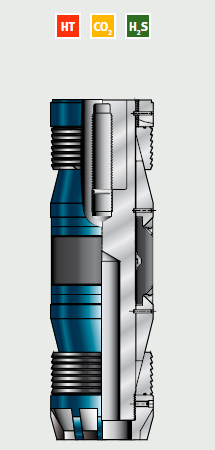

Model STWB Wireline Set Bridge Plugs are compact, small OD and designed for easy drill out. These bridge plugs will set securely in all but the very highest tensile casing. A ratchet lock ring stores the setting force in the plug. The one piece packing element and metal back up rings combine for a superior seal. The case hardened, one piece slips virtually eliminate premature setting, yet can be easily drilled out. They are available for 2 3/8” through 20” casing.
Features:
Model SCP Composite Bridge Plugs are used for temporary or permanent isolation of oil, gas and water, such as zone isolation, formation fracturing and acidizing. These easy drillable bridge plugs can be used for multi-zone fracturing, so it is an especially good choice for shale gas exploration.
SCP-P Solid body
SCP-F No-solid body
SCP-D No-solid body, cage type
Features:

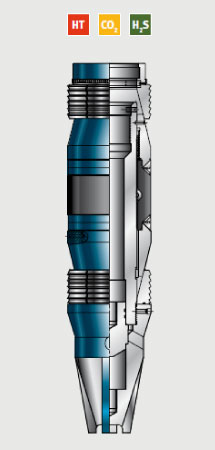

Model STMB Mechanical Bridge Plugs are used to isolate zones for temporary or permanent abandonment. These drillable bridge plugs set securely in any hardness casing. A ratchet lock ring stores the setting force in the bridge plug. The one piece packing element and metal back up rings combine for a superior seal. The case hardened, one piece slips virtually eliminate premature setting, yet can be easily drilled out. They are available for 4 1/2” through 16” casings.
Features:

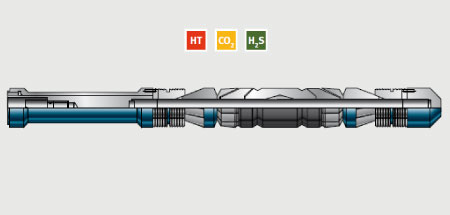

Wide Range Wireline Set Bridge Plugs are specially designed to run through tubing or restricted pipe and set securely in larger tubing or casing below. These bridge plugs will set securely in any hardness casing. A ratchet lock ring stores the setting force in the plug. Thvce packing element and metal back up rings combine for a superior seal. The case hardened, one piece slips virtually eliminate premature setting, yet can be easily drilled out. They are available for 1.610” through 5.044” setting ranges.
Features:
Model SHMB Hydro-Mech Set Bridge Plugs are used for temporary or permanent isolation of oil, gas and water, such as, zone isolation, formation fracturing, and acidizing. These bridge plugs can be set by drop a ball and up lift, do not need any setting tools. They are available for 4 1/4” through 20” setting ranges
Features:
Model SRWB wireline set retrievable bridge plug is a medium performance retrievable bridge plug that is run and set by a wireline pressure setting tool and retrieved by either tubing or sandline. The plug is used for zone isolation, formation fracturing, acidizing, and wellhead repair, and can be lubricated in and out of the well under pressure; thereby eliminating snubbing tubing or killing the well. The plug features a balanced equalizing valve, located immediately above the packing element system. Caged, bi-directional, one piece slips are located below the packing and firmly anchor the plug against pressure differentials from above or below. The plug is retrieved by ratcheting onto the retrieving neck, picking up four inches to equalize, setting down to uplock, then picking up to remove from well. No rotation is required to retrieve.
Features:
Cement Retainers
Model STWR Wireline Set Sleeve Valve Cement Retainers are used for secondary cementing operations. These drillable retainers set securely in any hardness casing. A ratchet lock ring stores the setting force in the retainer. The one piece packing element and metal back up rings combine for a superior seal. The case hardened, one piece slips virtually eliminate premature setting, yet can be easily drilled out. They are available for 4 1/2” through 20” casings.
Features:

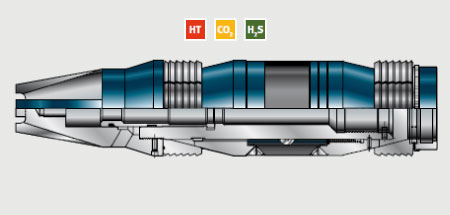

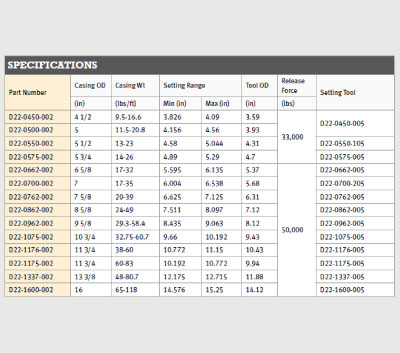

Model STMR Tubing Set Sleeve Valve Cement Retainers are used for secondary cementing operations. These drillable retainers set securely in any hardness casing. A ratchet lock ring stores the setting force in the retainer. The one piece packing element and metal back up rings combine for a superior seal. The case hardened, one piece slips virtually eliminate premature setting, yet can be easily drilled out. They are available for 4 1/2” through 16” casings.
Features:
Stinger Seal Assemblies
Model STSS Stinger Seal Assembly is a tubing conveyed latching seal assembly that is used to operate the sleeve-valve in an STWR Cement retainer previously set on wireline line. The STSS should always be run with a STTC Tubing Centralizer to provide for easier entry into the Cement retainer.
Features:
Setting Tools

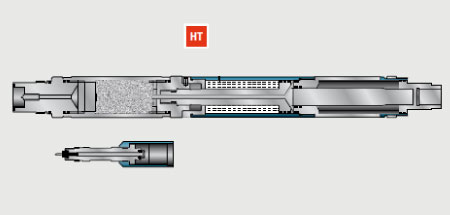

Wireline pressure setting tools come in single and multi-stage. Single stage tools provide dynamic force, which is used to set bridge plugs, production packers or cement retainers. Multi-stage setting tools feature increased stoke length, to enable the setting of casing patches, long travel bridge plugs or any requiring more than the normal stroke and tension of conventional pressure setting tools. The force is created by the

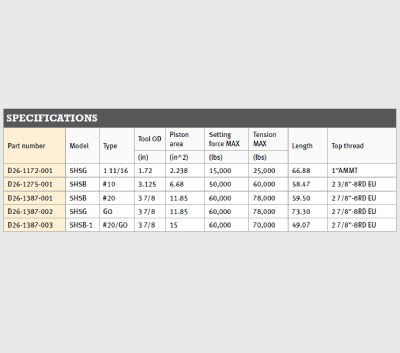

The hydraulic setting tools are used to run and set packers, bridge plugs and cement retainers on a workstring, production tubing or coiled tubing. The setting tool translates hydraulic pressure, applied to the tubing, to a force transmitted through the adapter kit to the slips and pack off the sealing element of these tools. It allows setting in high-angle or deviated wells, where it is often difficult to use wireline equipment.
Model STSB Mechanical Setting Tools are used to mechanically set STMB Bridge Plugs. It is designed to contain the upper slips of Bridge Plug in a safe retracted position while running to setting depth. The upper slips are released by right hand rotation and slacking off on the workstring
Features:
Model STSR Mechanical Setting Tools are used to mechanically set STMR Sleeve-Valve Cement Retainers. This tool incorporates both a stinger seal and mechanical setting function. In addition, it has a built-in snap-latch, allowing the tool to be latched into the cement retainer with set-down weight and released with either upstrain or right-hand rotation. The sleeve-valve on the cement retainer is in the open position while being run in the well. When the setting procedure is completed, the sleeve-valve may be closed by picking up two inches at the tools or opened by slacking off two inches. The snap- latch feature allows the sleeve-valve to be shifted open or closed while the tubing is still anchored to the retainer. Normally the valve is run open so the tubing may fill; however, for pressure testing the tubing, while running, the valve can be run closed. Cement Retainers can be set and pressure tested in a single trip.
Features:
Tubing Centralizer

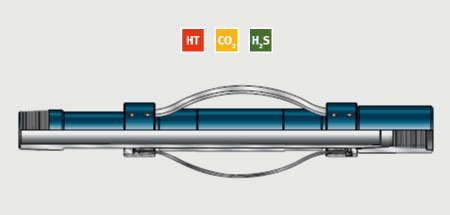

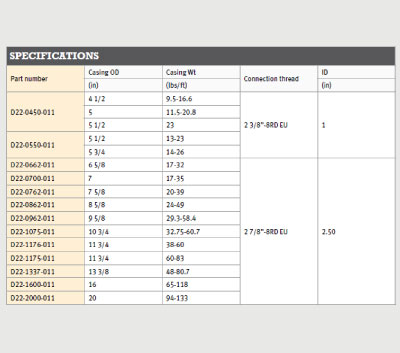

Model STTC Tubing Centralizer is used to center the tubing and provide for easier entry into an STWR Cement retainer previously set by wireline.
Features:
Permanent Production Packers
Model SPP-C Production Packers are used on installations requiring premium production equipment for high temperatures and pressures. These wireline set, millable packers are available for 4 1/2” through 11 3/4” casings.
Features:
Sets securely in any hardness casing, including premium grades

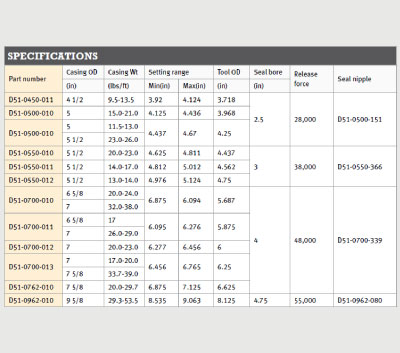

Model SPP-XC Permanent Production Packers have a larger ID through the packer bore making them an excellent choice for parallel string installations and similar applications. These wireline set millable packers are available for 4 1/2” through 9 5/8” casings.
Features:
Model SPP-XC Permanent Production Packers have a larger ID through the packer bore making them an excellent choice for parallel string installations and similar applications. These wireline set millable packers are available for 4 1/2” through 9 5/8” casings.
Features:
Model SPP-R Retrievable Production Packers are used for production, injection, testing, fracturing, squeeze cementing, gravel packing and as temporary bridge plugs. These wireline set packers are retrievable with tubing, sandline, electric wireline or coil tubing and require no rotation to release or set. The bi-directional one-piece slips hold high pressure differentials from either direction. SPP-R packers use conventional permanent packer seal nipples and accessories. They are available for 3 1/2” through 9 5/8”.
Features:
Mechanical Setting Packers
Model SMR-D Double Grip Retrievable Casing Packers are used in production, stimulation and testing applications. Their hydraulic hold down is below the pressure equalization valve. They feature a proven three element packing system and a balance sleeve device to assist in keeping the by-pass closed. They are available for 4 1/2” through 9 5/8” casings.
Features:
Large Bore Model SMR-D Double Grip Retrievable Casing Packers are used in production, stimulation and testing operations where maximum I.D. is required.
Their hydraulic hold down is below the pressure equalization valve. They feature a proven three element packing system and a balance sleeve device to assist in keeping the by-pass closed. They are available for 5 1/2” through 7 5/8” casings.
Features:

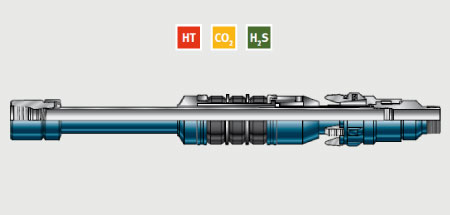

Model SMR-S Single Grip Retrievable Casing Packers are used in production as a convention long stroke Packer. They feature a proven three element packing system and a large by-pass area through the Packer. They are available for 4” through 9 5/8” casing.
Features:

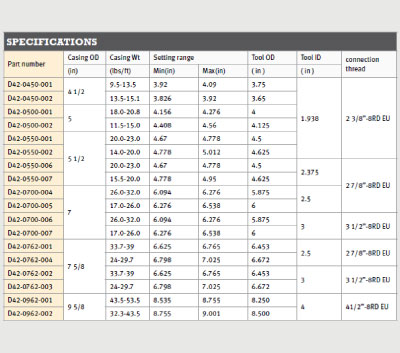

The Model SMA single string Mechanical Production Packer is a retrievable, double-grip compression or tension-set production packer that holds pressure from above or below. Once set, the tubing string can be left in tension, compression, or in a neutral position. A large internal bypass reduces the swabbing effect during run-in and retrieval, and closes when the packer is set. When the packer is released, the bypass opens first, allowing the pressure to equalize before the upper slips are pulled from the casing. The Model SMA also features an upper slip releasing system that reduces the force required to release the packer. A non-directional slip is released first, making it easier to release the other slips. These flexible features allow the SMA to be run in a variety of applications ranging from Production Packer to Bridge Plug to Service Packer.
Features:
Model STLS retrievable casing packer is a general purpose packer for production, injection, zone isolation, or remedial operations. It is a full-bore double-grip retrievable packer, with an integral unloader. Opposed, non-transferring dovetail slips prevent movement of the packer in either direction due to pressure differentials, while allowing landing of the tubing in tension, compression, or neutral. The Lock Segments serve as a releasable Lock Ring to maintain pack-off once the packer is set, and locks the unloader in the closed position until the tool is released. The Split Lock and Control Segments allow the tool to be both set and released with right-hand rotation.
Features:

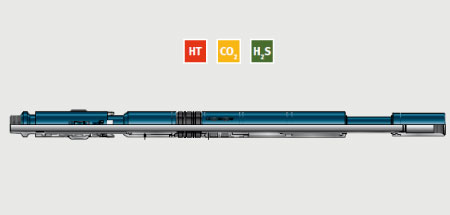

Model SMJ-A Retrievable Packers are used in Tubing Conveyed Perforating and Single Trip Production, stimulation, perforating, gravel packing and testing applications. The hydraulic hold down is below the pressure equalization valve. The tool features a proven three element packing system and a hydraulically controlled balance piston designed to keep the by-pass closed when set. The tools are available in 4 1/2” through 16” casings.
Features:

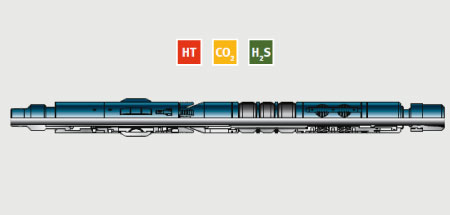

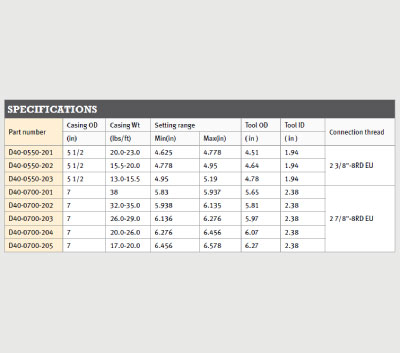

Model SMJ-B Retrievable Packers are used in Tubing Conveyed Perforating and Single Trip Production, stimulation, perforating, gravel packing and testing applications. The hydraulic hold down is below the pressure equalization valve. The tool features a proven three element packing system and a hydraulically controlled balance piston designed to keep the by-pass closed when set. The tools are available in 5 1/2” through 7” casings.
Features:

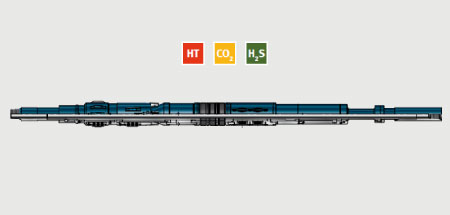

Model SMJ-C Retrievable Storm Packers are also used in production, stimulation, perforating, gravel packing and testing applications. The hydraulic hold down is below the pressure equalization valve. The tool features a proven three element packing system and a hydraulically controlled balance piston designed to keep the by-pass closed when set. The tools are available in 7” through 20” casings and comes standard with API IF thread forms.
Features:

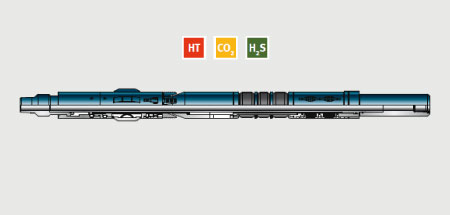

Model SMJ-D Retrievable Packers are used for perforating, production, stimulation and testing applications. The hydraulic hold down is below the pressure equalization valve. “J” slot structure makes it easy and reliable to set and release.
Features:

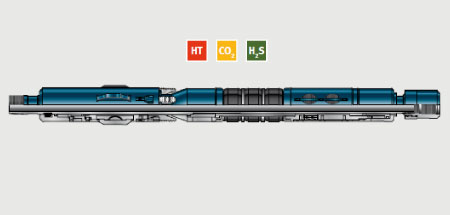

Model SMC Retrievable Packers are used for a variety of well treating and producing operations including squeeze cementing, formation fracturing, acidizing and testing. These double-grip single-string packers have a full opening bore that allows unrestricted fluid flow and easy passage of wireline tools. They also include hydraulically actuated upper button type slips and a built in pressure relief unloader. They are available for 4 1/2” through 7 5/8” casings.
Features:

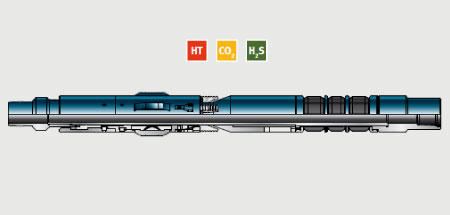

Model SME Packers are used for perforation, testing, formation fracturing, acidizing and production applications. Easy operation and reliable.
Features:
Model SMT Tension Packer is a retrievable, tension set packer, designed to hold pressure from below. This economical tension packer is for shallow wells where sufficient setdown weight is not available to utilize a set down packer. This packer can be used in water flood, oil production or treating applications. They are available for 4” through 13 3/8” casings.
Features:
Model SMP Pull-Push Type Packers are used for testing and zonal isolation application. The packers will be set when uplift and put down and unset by uplifting. It is simple structure and reliable functionality.
Features:
Hydraulic Setting Packers
Model SH-2 Retrievable Hydraulic Packers can be run in single or multiple zone installations. It is recommended for deviated wells, where conditions are not suitable for mechanical or wireline set packers. No tubing movement is required or generated to set the packer. Once set, the packer is locked in place by one-piece bi-directional slips and will hold high differential pressures.The packer can be released by either straight pull or right-hand tubing rotation. An equalizing and by-pass feature is incorporated in the release mechanism. They are available for 5” through 9 5/8” casing.
Features:

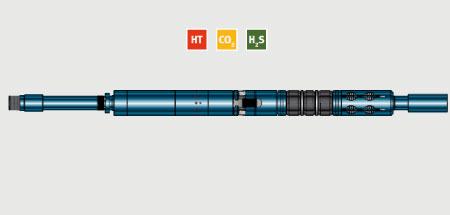

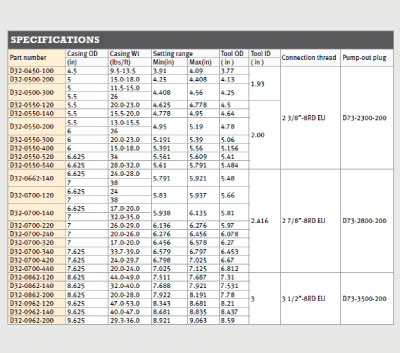

Model SHF Retrievable Hydrostatic Packer is used in production, injection and zonal isolation. It can be run in single or multiple zone installations. It is recommended for deviated wells where conditions are not suitable for mechanical or wireline set packers. No tubing movement is required or generated to set the packer. Once set, the packer is locked in place by one-piece no-directional slips. The packer can be released by straight pull . They are available in 4 1/2” through 9 5/8” casings.
Features:

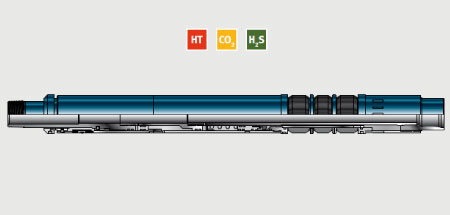

The SHC Packers is used in injection, formation fracturing, acidizing and squeeze cementing. It has hydraulic setting, and can be used solely or with other packers as a combination. Hydraulic anchor is recommended with the string to enhance the stability.
Features:

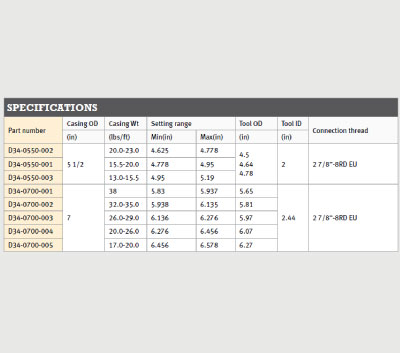

Model SHH packer is a hydraulic setting packer, and can be taken out of well by releasing the pressure. They can be used for injection, formation fracturing and acidizing.
Features:
Tubing Anchor
Model STA Tubing Anchor/Catchers are used to allow placement of tubing in tension. Vertical tubing movement is prevented, which in turn lessens sucker rod tubing wear. Their small o.d. and large i.d. permits larger volume production capacities. These fully retrievable tools can be easily adjusted for emergency release by adding or removing shear pins. They are available for 4 1/2” through 7 5/8” casings.
Features:
Others
Model SEJ expansion joint is a key accessory to downhole string, which is used for compensation mechanism by the length change of string, caused by internal and external pressure or temperature changes mechanism.
Features:

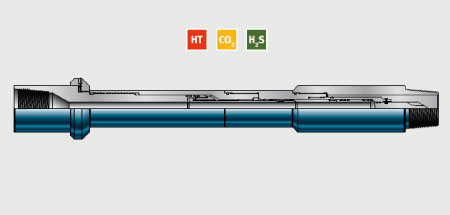

The Storm valve is a combination Back Pressure Valve and Safety Joint that is run above a SMJ-C Storm Packer, in order to provide well control protection during a temporary abandonment of the well, without having to pull the drill pipe. The Storm Valve allows the packers to be set and then permit disconnection and retrieval of the drill pipe and the upper sub of the valve, while at the same time automatically closing the Storm Valve, isolating the drill pipe below the Storm Packer.
Features:
Model SAH hydraulic anchors help prevent the tool from being pumped up the hole. These anchors can hold high pressure of 10k psi.
Model SCV valve is normally installed above the packers and opened or closed by pumping a dropping ball down.
Note: Different guide ring OD for different casing size.
A variety of dump bailers are for casing applications. The service most frequently performed with these dump bailers is the dumping of sand and/or cement on bridge plugs set in casings.
Features:

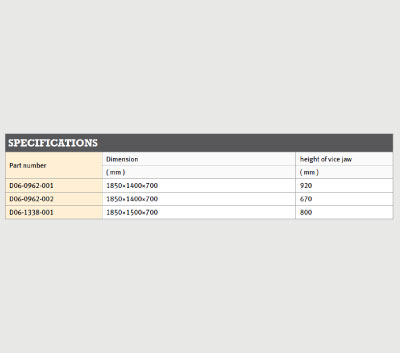

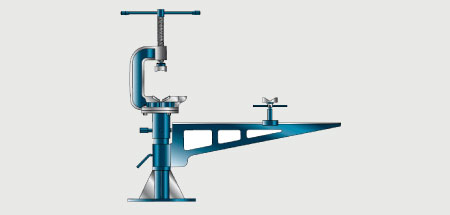

The Sur-Grip Vise is a heavy duty screw-type vise designed for holding pipe, valves, fittings, or just about anything within the capacity of its positive grip jaws. Equipment may be placed in the versatile Sur-Grip from any of three sides with the fourth side acting as a positioning and steadying guide. The unit’s easy rotating handle quickly extends at arm height for extra leverage for critical tightening applications. The Sur-Grip Vise is available in sizes 2”~9 5/8”.

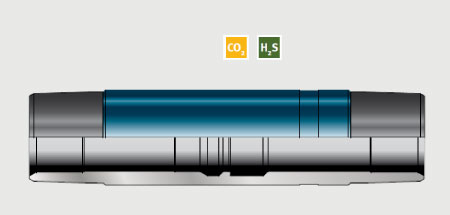

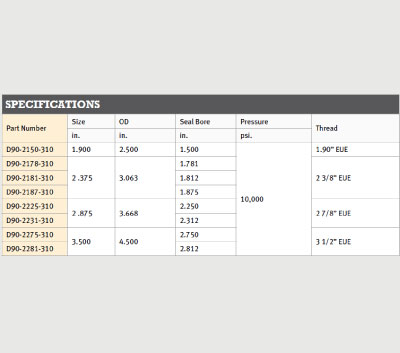

The Model “X” Profile Nipple offers an expanded versatility to downhole selection. Any desired number of “X” Nipples can be placed in the production string, thereby offering an unlimited number of positions for setting and locking surface controls.
Applications:
The Model “XN” Profile Nipple is a BOTTOM NoGo Nipple that provides for the location of various wireline flow control devices in the production string.
Applications:

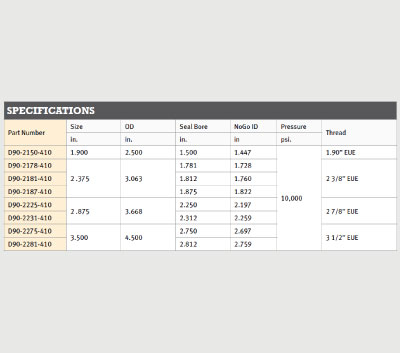

The Model “R” Profile Nipple is a BOTTOM NoGo Nipple that provides for the location of various wireline flow control devices in the production string.
Applications:
TThe Model “R” Profile Nipple is a BOTTOM NoGo Nipple that provides for the location of various wireline flow control devices in the production string.
Applications:
The “XO/XD” Circulating Sleeve provides a convenient way to establish or shut off communication between the tubing and the annulus. Any number of these sleeves may be run in a tubing string, and any or all of them may be opened or closed in one run by standard wireline methods.
Design Features:

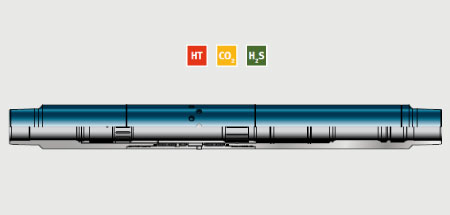

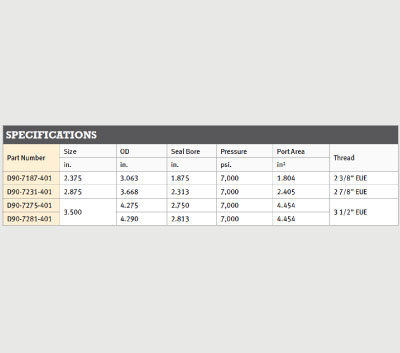

The “XA” Circulating Sleeve provides a convenient way to establish or shut off communication between the tubing and the annulus. Any number of these sleeves may be run in a tubing string, and any or all of them may be opened or closed in one run by standard wireline methods.
Design Features:

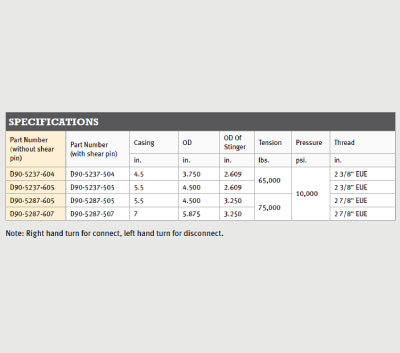

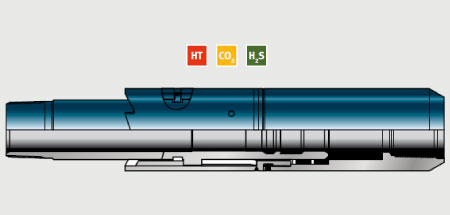

The T-2 On-Off Tool is a tubing disconnect device that has an internal blanking plug locking profile with seal bore for utilizing flow control equipment. The Overshot has a box looking up, which connects to tubing string, and a pin looking down off the Stinger, which connects to the packer. The T-2 On-Off Tool has two basic components that comprise the Overshot. The Top Sub, which contains two bonded rubber steel seals and the Jay Latch which has a J Slot configuration to locate and latch the On—Off Tool Stinger. The Jay Latch also has a wash over shoe configuration which allows cutting through debris. The Overshot automatically Jays up on the Stinger, when lowered into the well.
Applications:

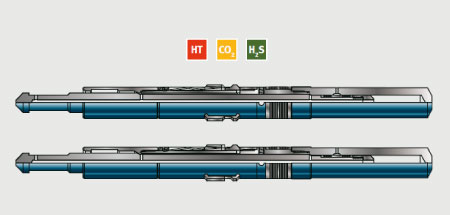

The PX Plug is a device capable of holding pressure differentials, from above or below, when set at any X Profile Nipple of the same size.
The PXN Plug is a device capable of holding pressure differentials, from above or below, when set at any XN Profile Nipple of the same size
The “X” Lock Mandrel is a selective set lock designed to be landed and locked, down-hole, in a “X” Profile Nipple. Equalizing Sub-Assemblies and a variety of sub—surface flow control devices may be attached to this lock mandrel before running.
The PX/PXN Equalizing Prong and Valve assembly, when attached to an X or XN Lock Mandrel Assembly, converts the lock mandrel to a plug, with equalizing device, capable of holding pressure differentials from above or below.

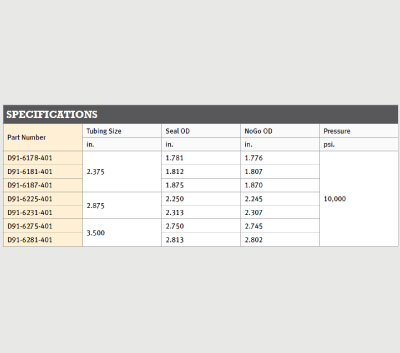

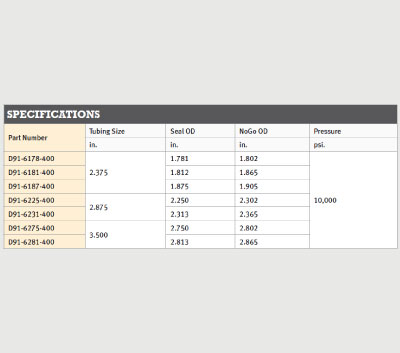

This Plug allows fluid to by-pass through the side ports, when running in the well. Once Plug is locked in a “F” type profile, pressure can be held in either direction. After well has been repaired or tested, Plug can be equalized and pulled with standard wireline tools.
To Run: C-1 Running Tool
To Pull: SB or JDC Pulling Tool, with B Probe
This Plug allows fluid to by-pass through the side ports, when running in the well. Once Plug is locked in a “R” type profile, pressure can be held in either direction. After well has been repaired or tested, Plug can be equalized and pulled with standard wireline tools.
To Run: C-1 Running Tool
To Pull: SB or JDC Pulling Tool, with B Probe

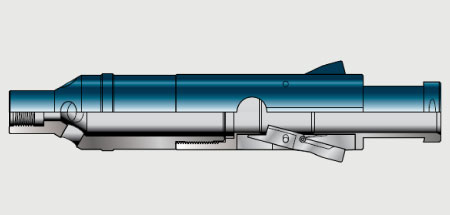

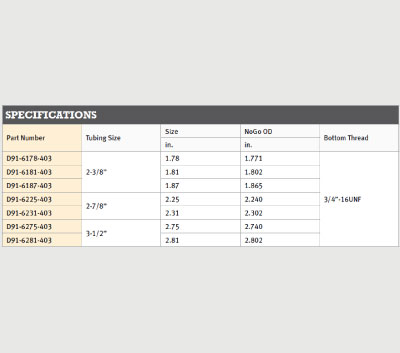

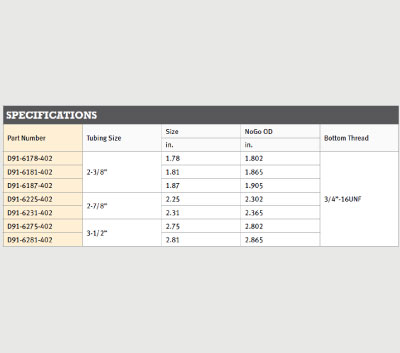

This Instrument Hanger is used to land and lock geophysical instruments in “F” type profiles to allow recording of reservoir data.
Features/Benefits:
To Run: “C-1” Running Tool
To Pull: SB or JDC Pulling Tool, with B Probe
This Instrument Hanger is used to land and lock geophysical instruments in “R” type profiles, to allow recording of reservoir data.
Features/Benefits:
To Run: “C-1” Running Tool
To Pull: SB or JDC Pulling Tool, with B Probe

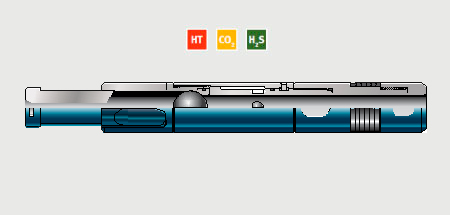

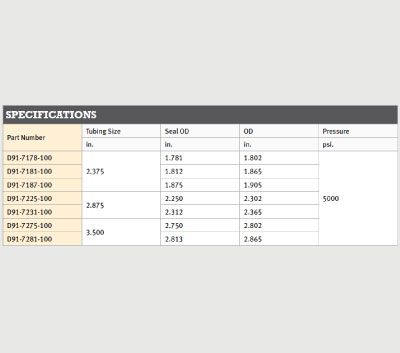

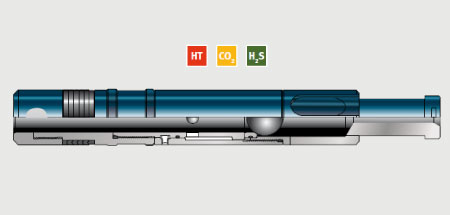

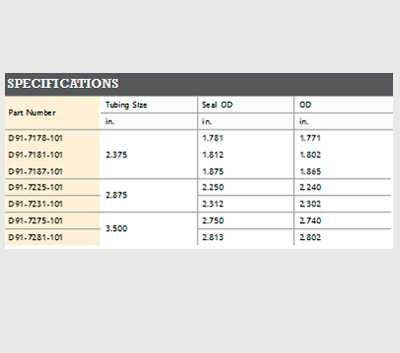

Equalizing Check Valves are sometimes called “Standing Valves” because they prevent fluid flow in one direction (downward), while allowing full fluid flow in the opposite direction (upward). The “FB-2” seats on the top NoGo shoulder of a “F” type profile, which prevents downward movement. It is not locked into the profile, and has a built-in method of allowing equalizing before pulling.
To Run: “C-1” Running Tool
To Pull: SB Pulling Tool
Equalizing Check Valves are sometimes called “Standing Valves”, because they prevent fluid flow in one direction (downward) while allowing full fluid flow in the opposite direction (upward). The “RB-2” seats on the bottom NoGo shoulder of a “R” type profile, which prevents downward movement. It is not locked into the profile, and has a built-in method of allowing equalizing before pulling.
To Run: “C-1” Running Tool
To Pull: SB Pulling Tool

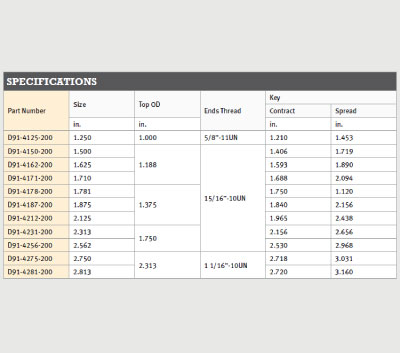

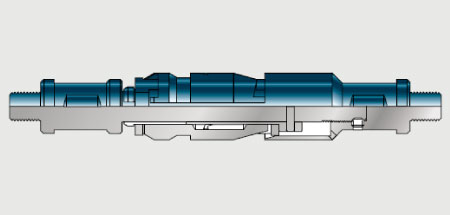

The “B” Shifting Tool is designed to selectively locate and shift most sliding side door sleeves. This is accomplished by the “B” Shifting Tool keys, engaging the SSD inner sleeve, and depending on the direction the tool is run, up or down, the sleeve is shifted.

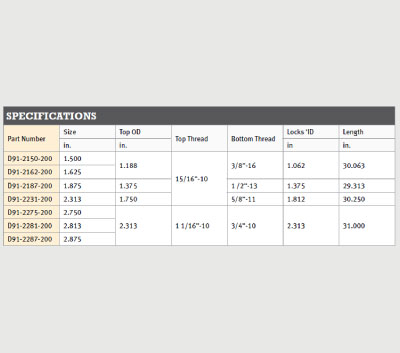

TThe X-Line Running Tools are used to run, locate, and set Type X, XN Locks and subsurface safety equipment.

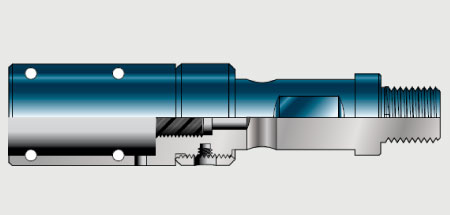

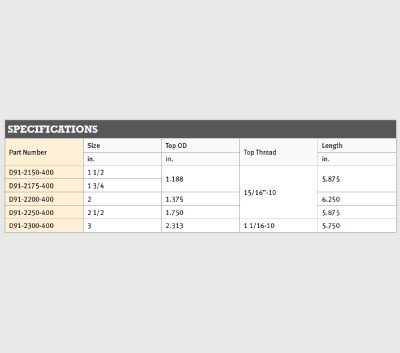

The C-1 Running Tool is capable of running and landing several types of FWG, RZG, FSG, FB- 2, RB-2 Style Locks and Plugs.

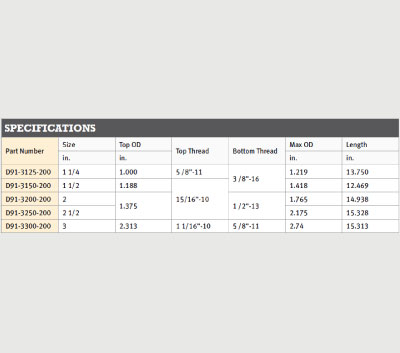

The “SB” Series Pulling Tool is a shear down releasing tool used in pulling subsurface devices, which have external fishing necks. To accommodate the many different types of devices, the core on the “SB” Series Pulling Tool is made in various lengths and can be changed in the field.
The “JD” Series Pulling Tool, through minor component changes, is a shear down or shear up releasing tool, used in pulling subsurface devices which have external fishing necks. To accommodate the many different types of devices, the core of the “JD” Series tools is made in various lengths and can be changed in the field.

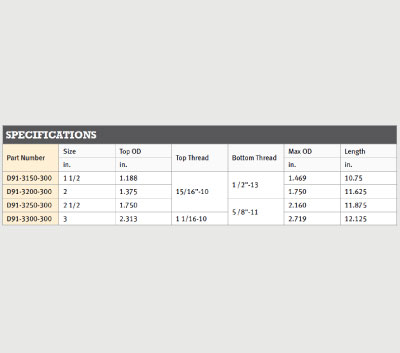

The “GS” Running/Pulling Tool is a shear down releasing tool used to run or pull subsurface devices, which have internal fishing necks.

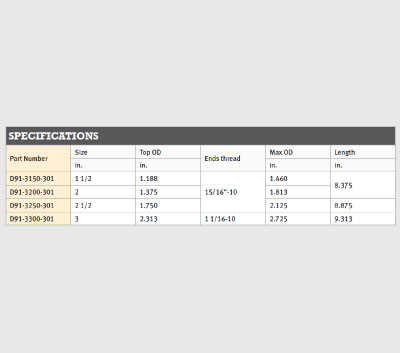

The “GR” Adapter is used in conjunction with the “GS” Pulling Tool to convert it into a “jar up to released” type tool.
The B Probe is a wireline manipulated device that in used to close the dogs (or locks) on a Baker top or bottom NoGo Style lock mandrel in order to remove it from the well.

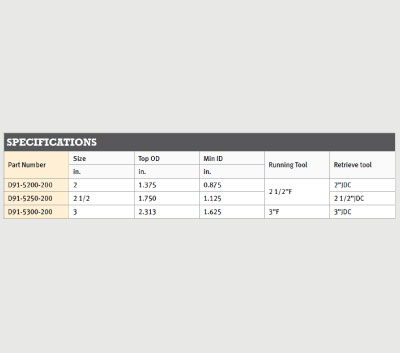

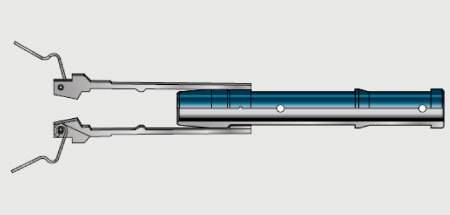

The Collar Stop is designed to locate in the collar recess of API upset and non-upset tubing. By lowering the stop to the desired depth and lifting upward, the latch springs are tripped allowing the stop arms to expand into the collar recess. Downward jarring on the inner mandrel pushes it down behind the collar stop arms locking them into places in the collar recess.
The Tubing End Locator is used to determine the depth of the tubing through the use of a spring loaded finger. The spring loaded finger catches the end of the tubing, when pulled upward, registering a reading on the surface weight indicator.

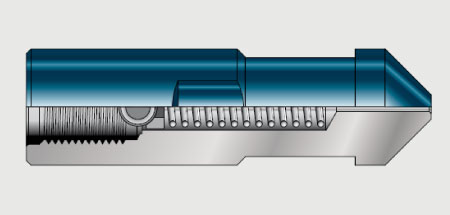

The Single Strand Rope Socket is the means used to attach single strand wireline with the wireline toolstring. The spool type rope socket is recommended for use with 0.066’’-0.092’’ line.

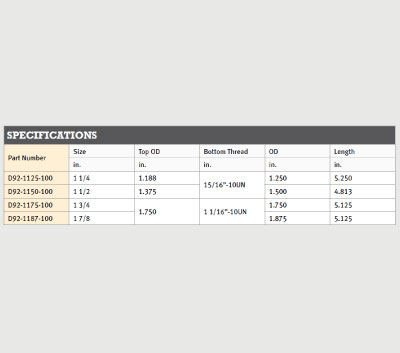

The Brass Wedge Rope Socket is used as a means of connecting the wireline to the wireline toolstring. The line is run through the body and around the brass wedge. With the line set in the provided groove of the brass wedge, the line and brass wedge are pulled tightly into the taper of the body. Recommended for use with 0.092’’-0.187’’ line.

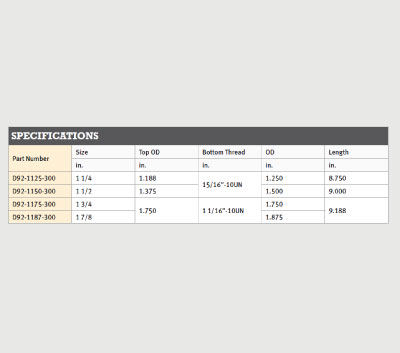

The Multi-Strand Rope Socket is the means used to attach multi-strand lines with the wireline toolstring. The slip type rope socket is designed for use with small stranded lines up through 3/16” diameter.

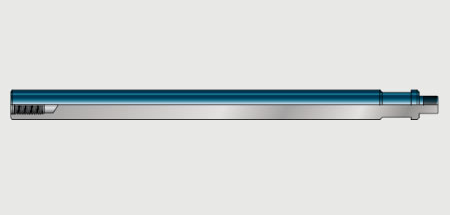

The Wireline Stem, also called a weight bar, is used to add weight to the wireline toolstring to counteract the wellbore pressure, allowing the easy descent of the toolstring. It is also used to increase the effectiveness of jarring operations.

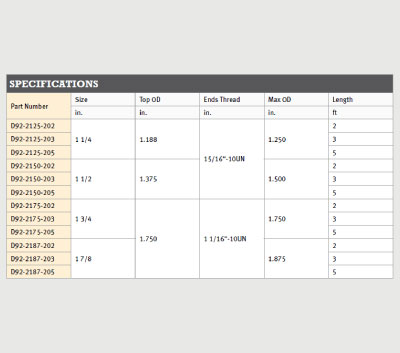

The Wireline Roller Stem is a tool used in the wireline workstring to minimize the effect of friction caused by the toolstring sliding on the tubing wall during wireline work in deviated wellbores.
Roller Stems consist of standard sinker bars with slots to accommodate simple rollers held in position with captive dowel pins.

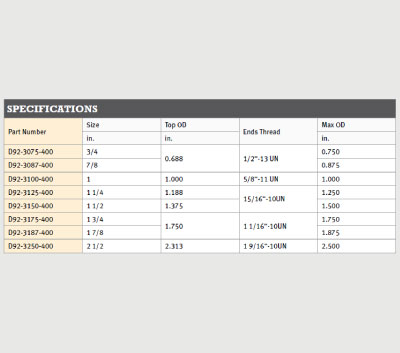

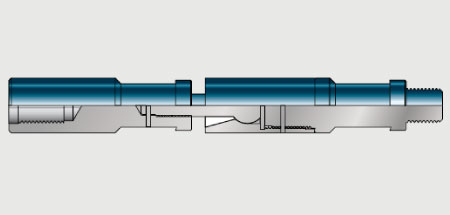

The Knuckle Joint is designed for applications where toolstring rotation and/or deflection is required. It is most useful in fishing operations, where the pulling tool or overshot requires flexibility to properly locate the fish.

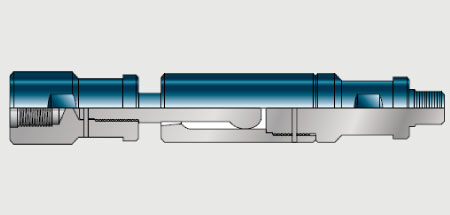

The Knuckle Jar provides a range of motion that helps to make the toolstring more flexible. Because the Knuckle Jar has a stroke, it can also be used for light jarring.
The Tubular Jar, through wireline manipulation, can be used to provide an upward or downward impact. The intensity of the jarring impact depends on the weight of the wireline stem above the jar, the stroke length of the jar, and the density of the well fluid. The perforated body of the Tubular Jar allows fluid bypass, reducing the effects of the well fluid density on the jarring impact.

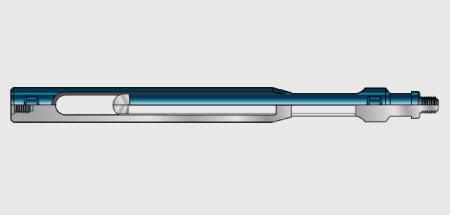

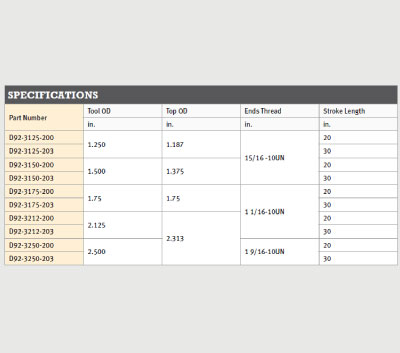

Wireline Link Jars, sometimes called ‘Spang Jars’ or ‘Mechanical Jars’ are of the cable tool type, and utilize the weight of the stems connected immediately above, to deliver effective jarring impacts, by manipulating the wireline upwards or downwards at the surface. The effectiveness of these impacts is largely dependant on the weight of the stem used, the length of the stroke of the ‘jars’, the size and straightness of the tubing, the viscosity of the fluid in the tube, and the well pressure acting upon the cross sectional area of wireline. ‘Jars’ are composed of two pieces linked together, rather like long chain links, which are free to be extended or collapsed (stroke).
The Wireline Intensifier is a wireline stretch simulator device used in conjunction with hydraulic or spring jars when jarring at shallow depths in the wellbore. The wireline intensifier is available in sizes from 1-1/4” to 3” OD.
Upward tension, on the wireline compresses the spring, within the intensifier assembly and the stored energy, is transferred to the hydraulic or spring jars, located further down the toolstring.
A combination of surface wireline tension, and the energy stored within the spring of the accelerator, will eventually cause the hydraulic or spring jar to fire, thus completely releasing the energy stored within the spring. The tension of the wireline can then be relaxed and the operation repeated, until the subsurface tool is jarred free.

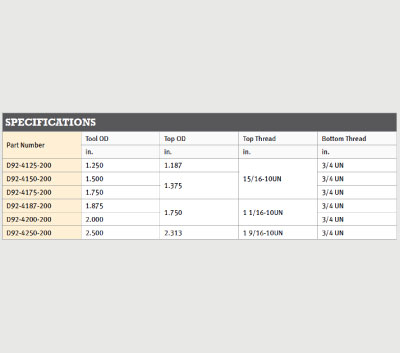

The Wireline Shock Absorber is used to dampen the shock transmitted to delicate downhole instruments being run into the wellbore during wireline operations.
The Wireline Shock Absorber basically consists of a fishneck, main body, upper spring, mandrel, lower spring and bottom sub. The lower spring is usually the heavier of the two springs, in that it is constantly compressed by the weight of the instruments, normally suspended immediately below the shock absorber. The mandrel floats between the upper and lower springs and absorbs shock; therefore, protecting the delicate downhole instruments.
The Paraffin Cutter (Gauge Ring) has many different purposes. It can be used to calibrate tubing, locate landing nipples, and remove paraffin and other deposits from the tubing wall.

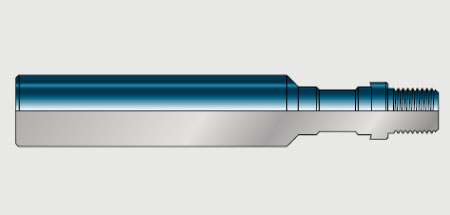

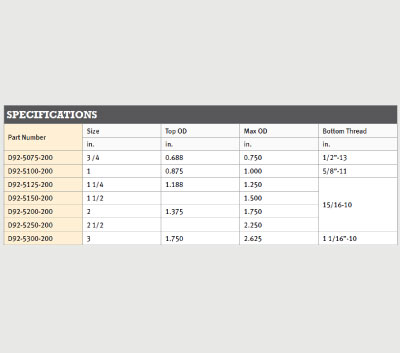

The Blind Box is used to beat down an obstruction encountered in the tubing string. It is also widely used to cut wireline on a rope socket during fishing operations. The Blind Box is approximately nine inches long with a male thread connection and fishneck facing upwards and flat bottom down. The diameter of the Blind Box should normally be matched to the tubing, in which it is to be used

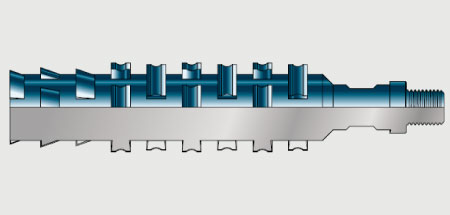

The Pineapple Broach is used to cut burrs in the tubing I.D., caused by perforation, rust, bent tubing, etc.

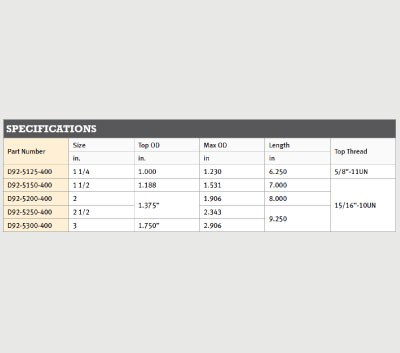

The Tubing Swedge is used to bend out irregular places and other obstructions within the tubing string. It is equipped with a central bore and angled fluid ports, for ample fluid bypass.

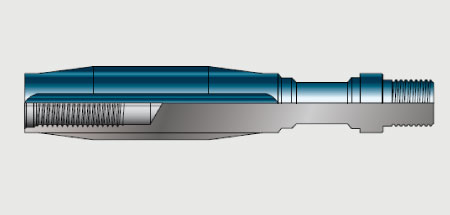

The Fluted Centralizer is a wireline tool designed to ensure that the workstring running or pulling tool is at its most central position, especially during operations in deviated wells.
Normally attached to the toolstring just above the running/pulling, or fishing tool, the OD is machined to suit the ID of the tubing in which it is to be run. This allows the tool to be used as a tubing drift, or gauge in addition to centralizing the toolstring.
The Bow Spring Centralizer is designed for use with slickline toolstrings, or when running downhole gauges out through the tail pipe and into the casing.
The Bow Spring Centralizer is able to pass through the restricted bores of the tail pipe and expand into the casing liner below, thus enabling the tools to be held away from the casing.
The Sand Bailer is a pump action type bailer, designed to remove sand and small debris in the tubing string, through the upward stroking motion of the pump section. Sand and debris are held in the load barrel through the use of different style check bottoms. A large percentage of wireline service involves sand bailing, prior to the actual pulling or setting of subsurface flow controls.

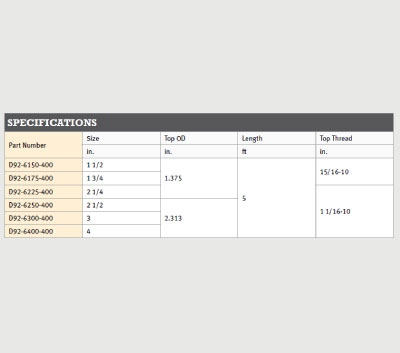

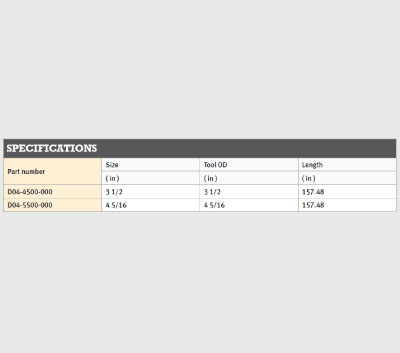

The Dump Bailer is designed to allow a variety of fluids to be dumped within the well, on top of any sub-surface device. Wireline Dump Bailers are available in a variety of sizes. The bottom shoe of the Wireline Dump Bailer should always be matched with the downhole device, upon which fluid is to be dumped. Bottom assemblies are available with glass shear disc or O-Ring seal piston.

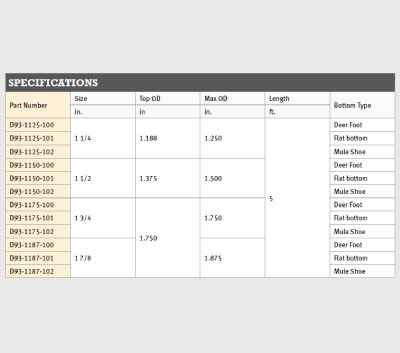

The Go Devil is dropped to cut the wireline at the rope socket, when the toolstring becomes stuck.

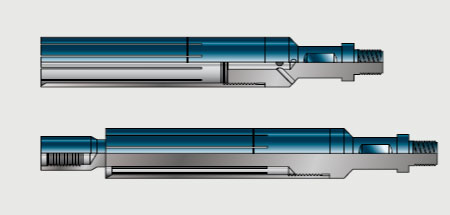

The Wirefinder Split Skirt is used to bend or ball the uppermost part of the wire, so that retrieving applications may be used.
The Center Spear is made by welding barbs on a pointed rod. It is most commonly used when the wire is balled up and stuck in the tubing. It can be driven into the tangled wire to loosen it and facilitate the use of a two prong wire grab for final wire retrieval.
The Two Prong Wireline Grab is used to retrieve broken wire from the tubing string. The arms include welded bards, which catch the wire.
The ‘Baiting’ Type Bulldog Spear is used to retrieve (fish) wireline tools lost in the wellbore that do not have a conventional fishing neck and are therefore, best fished with an internal spear.
The spear is run on a ‘GS’ running/pulling tool and speared into the fish. In the event the fish cannot be pulled, the ‘GS’ running/pulling tool will shear its pin and release. This will leave an internal fishing neck ‘looking up’, to enable further fishing attempts. The fish is then said to be baited.
The ‘Baiting’ Type Bulldog Spear has an optional Engagement Stop Ring (shown) available on request.

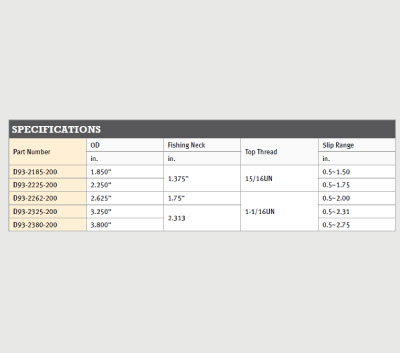

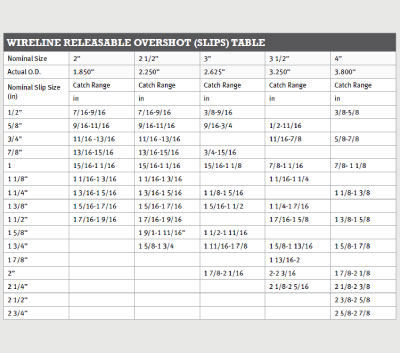

The Releasable Overshot is a slip type overshot, used to retrieve a fish lost in the wellbore that does not have a conventional fishing neck.
Once latched onto a fish, the overshot can be released by jarring downwards provided the overshot has a solid footing upon which the core can be driven against.
The Heavy Duty Magnet Fishing Tool is a wireline service tool used to magnetically attract and retrieve ferrous debris lost in the wellbore.
The Impression Block consists of a steel housing with a lead insert. Impression Blocks are used during fishing operations to determine the shape, size and position of the object being fished.
